Data and sizes of SWC-I cardan shaft

TYPE		SWC-I 58	SWC-I 65	SWC-I 75	SWC-I 90	SWC-I 100	SWC-I 120	SWC-I 150	SWC-I 180	SWC-I 200	SWC-I 225
A	L	225	285	335	385	445	500	590	640	775	860
	Lv	35	40	40	45	55	80	80	80	100	120
	m(kg)	2	3	5	6.6	9.5	17	32	40	76	128
B	L	150	175	200	240	260	295	370	430	530	600
B	m(kg)	1.7	2.4	3.8	5.7	7.7	13.1	23	28	55	98
C	L	128	156	180	208	220	252	340	348	440	480
C	m(kg)	1.3	1.95	3.1	5	7	12.3	22	30	56	96
Tn(N*m)		180	240	500	800	1200	2300	4500	8400	16000	22000
Tf(N*m)		90	120	250	400	600	1150	2250	4200	8000	11000
β(°)		35	35	35	35	35	35	35	25	25	25
D		52	63	72	92	100	112	142	154	187	204
Df		58	65	75	90	100	120	150	180	200	225
D1		47	52	62	74.5	84	101.5	130	155.5	170	196
D2(H9)		30	35	42	47	57	75	90	110	125	140
D3x δ		38*1.5	45*1.5	63.5*2.5	63.5*2.5	89*2.5	89*2.5	120*3	120*3	127*5.5	140*6.5
Lm		32	39	45	52	55	63	85	87	110	120
K		3.5	4.5	5.5	6	8	8	10	12	14	15
t		1.5	1.7	2	2.5	2.5	2.5	3	4	4	5
n		4	4	6	4	6	8	8	8	8	8
d		5.1	6.5	6.5	8.5	8.5	10.5	13	15	17	17
mL(kg)		0.14	0.16	0.38	0.38	0.53	0.53	0.87	0.87	1.65	2.14
Flange bolt	size	M5	M6	M6	M8	M8	M10	M12	M14	M16	M16
Flange bolt	Tighterning torque	7	13	13	32	32	64	110	180	270	270

1. Notations：

L = Standard length, or compressed length for designs with length compensation
Lv = Length compensation;
m = Weight;
Tn = Nominal torque;
Tf = Fatigue torque, i.e. permissible torque as determined according to the fatigue strength
under reversing loads;
β= Maximum deflflection angle;
δ＝Thickness of the tube;
mL＝ weight per 100mm tube.

Send Inquiry Now

Core values govern the manner, in which we conduct business:

• Integrity – Acting with honesty and honor without compromising the truth

• Partnership -Partnering with our clients, we strive to fully understand their businesses by constantly implementing a customized approach to drive growth in their businesses.

• Accountability – Acknowledging and assuming responsibility for actions, products, decisions, and policies applied individually and companywide.

• Safety – ensuring the health and safety of employees and going beyond the legal requirements to provide an accident-free workplace.

• Innovation – Pursuing new creative ideas that have the potential to change the world.

• Empowerment – Encouraging and supporting employees to enhance, take initiative, and give the best. Adopting an environment to empower employees to lead and make decisions.

Request Our Latest Price

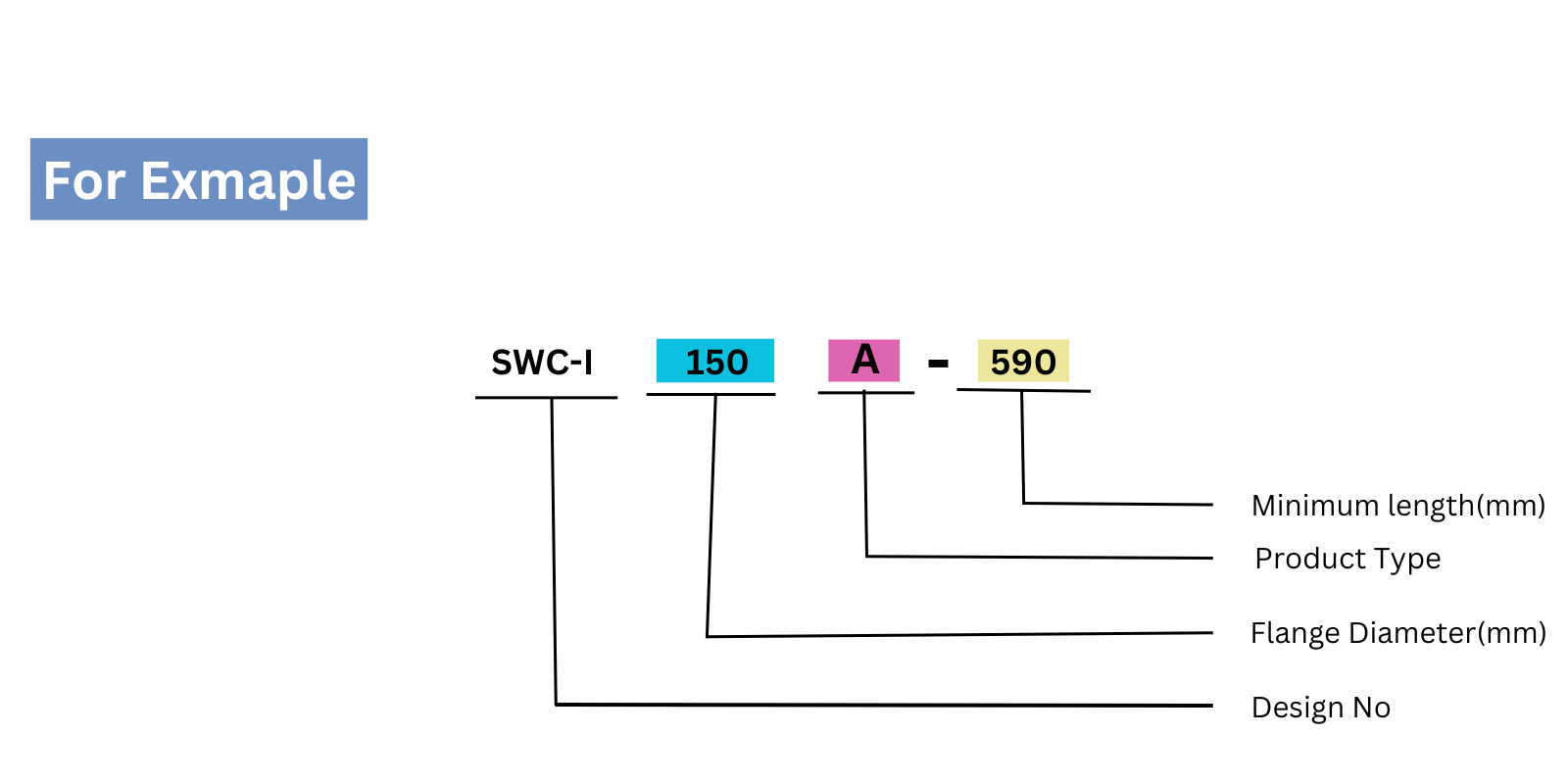

Product Model	SWC-I200A-775+100
Main Material	35CrMo or 45# Steel
Nominal Torque	16000 N.M
Normal Length	775mm
Length Compensation	100 mm

Sitong Universal Coupling SWC-I200A-775+100 u-joint 62mm ST009
